ATEN Control System

The VK224 4-Port Serial Expansion Box provides four additional bi-directional RS-232/422/485 serial ports for a flexible expansion of the ATEN Control System. This allows users to control additional serial devices in an environment where more serial devices are required. With the advantage of an Ethernet-based connection, the expansion box can be easily connected to the VK2100 Control Box via a LAN connection from a variety of locations across a network.

• Provides 4 bi-directional RS-232/422/485 serial ports to expand the ATEN Control System
• Up to eight VK224 expansion boxes can be added to a single Control Box
• Flexible Deployment: Connects to a Control Box via an Ethernet connection
• ID Switch pairs the VK224 with a controller to instantly configure the network settings
• Supports Power over Ethernet (PoE) or DC power supply
• Firmware upgradable through USB or Web interface

The VK236 6-Port IR/Serial Expansion Box provides six additional IR/Serial ports for a flexible expansion of the ATEN Control System. This allows users to control additional IR/serial devices in an environment where more devices are required. With the advantage of an Ethernet-based connection, the expansion box can be easily connected to the VK2100 Control Box via a LAN connection from a variety of locations across a network.

• Provides 6 IR/Serial ports to expand the ATEN Control System
• Up to eight VK236 expansion boxes can be added to a single Control Box
• Flexible Deployment: Connects to a Control Box via an Ethernet connection
• ID Switch pairs the VK236 with a controller to instantly configure the network settings
• Supports Power over Ethernet (PoE) or DC power supply
• Firmware upgradable through USB or Web interface

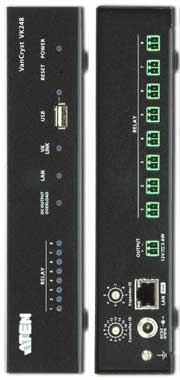

The VK248 8-Channel Relay Expansion Box provides an additional eight channels of relay output for a flexible expansion of the ATEN Control System. This allows users to control additional devices such as screen, projector lifts and blinds in environments where more devices are required. With the advantage of an Ethernet-based connection, the expansion box easily connects to the VK2100 Control Box via a LAN connection from a variety of locations across a network.

• Provides 8 relay channels to expand the ATEN Control System
• Up to eight VK248 expansion boxes can be added to a single Control Box
• Flexible Deployment: Connects to a Control Box via an Ethernet connection
• ID Switch pairs the VK248 with a controller to instantly configure the network settings
• Provides DC power to power an AC relay module or other device
• Supports Power over Ethernet (PoE) or DC power supply
• Firmware upgradable through USB or Web interface

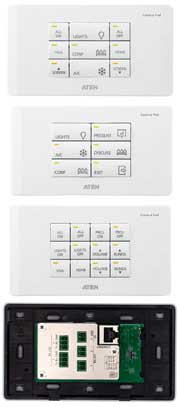

The VK0200 is a fully-customisable 12-button Control Pad that integrates a controller with a keypad as an all-in-one solution. Aimed for small/medium meeting room or classroom control, the VK0200 offers a ready-to-use solution that easily connects the devices, configures via the intuitive VK6000 Configurator Software, and flexibly customises keypad button functions and layout to fulfil most applications.

The ATEN Control System is an Ethernet-based management system that connects all the hardware devices found in a room for centralised control effortlessly. The VK0200 Control Pad not only plays the role as the main controller that connects the hardware devices, but also acts as a control interface with customisable buttons and layout. Created with flexibility in mind, the two-gang Control Pad can be laid out in 125 different combinations of 6 to 12 buttons that snap together as easy as Lego's. By connecting to the local network, users will find it's effortless using VK6000 software to configure the desired control of any connected device from the Control Pad. With the ready-to-go combo Control Pad, you have instant and smart control of the facilities from a Control Pad that can manage any device in the room.

• Fully-customisable 12-button Control Pad that integrates a controller with a keypad
• Supports various control interface connections: 2x RS-232 ports, 2x relay channels, 1x digital input, and 1x Ethernet port
• 125 layout combinations of 6 to 12 buttons
• Web GUI for easy system configuration

• Key pad - provides physical connection to the ATEN Control System
• Fully customisable with 125 layout combinations of 6 to 12 buttons; customised button engraving service
• Easy ID pairing with Control Box for Ethernet communication
• Up to 8 keypads connect to a single Control Box for future scalability

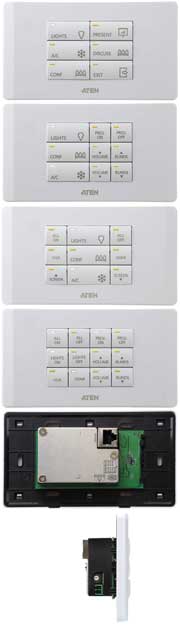

The VK112EU is a fully-customisable 12-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind, the 2-gang keypad can be laid out in 125 different combinations of 6 to 12 buttons that snap together as easy as Lego's. By connecting to the VK2100/VK1100 Control Box over a LAN, users will find it's effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the buttons ready to go, you have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room.

The VK112EU is an affordable solution, perfect to serve as the primary interface in meeting rooms, or as secondary device control in classrooms and conference centres.
